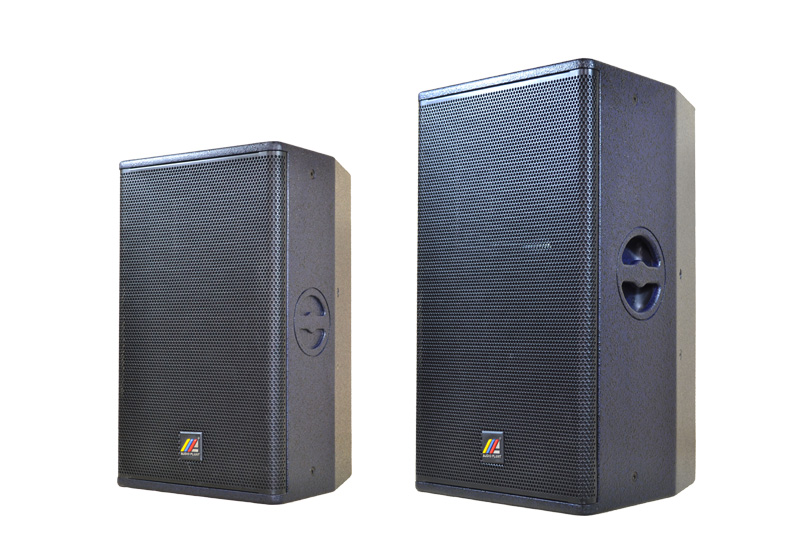

Starlord-RS全频专业音箱

发布时间:2021-04-02人气:


産品名稱:  Starlord-RS系列音箱
規    格:  10"、12"
産品類別:  专业二分频音箱


産品特点
RS系列是专为高端KTV娱乐会声设计的二分频音箱系统,
■内部配置 1 只意大利顶级进口RCF 1.75″高音驱动单元和 1 只高品质进口定制中低音扬声器单元。可满足各类高端复杂的扩声环境需求。
■多角度指向性能有效降低房间内的啸叫情况出现,超级强劲的低频可营造宽阔的立体感声场,清晰细腻的中高音频更能突显出人声的磁性浑厚的效果。
■电子声压保护分频网络设置物理相位修正,提升整体扩声系统的稳定性
■ 箱体采用18 mm进口桦木声学板制作,箱体是聚脂环保漆表面采用行业首创渐变喷漆处理,不同角度分别呈现蓝、黑、紫色颜色效果。
■ 防水、防潮、耐晒、耐磨容易维护适用各种扩声场合。
■ 四角可转LOGO带有防尘面网的2.0mmSPCC防护铁网。
■ 底部35mm标准安装支架的插孔。
RS series is designed for high-end KTV entertainment audio system,
■ Internal Configuration 1 Italian top import RCF 1.75′′ treble driver unit and 1 high-quality import customized Bass Speaker unit. It can meet all kinds of high-end complex sound reinforcement environment needs.
■ The multi angle pointing performance can effectively reduce the howling in the room. The super strong low frequency can create a wide three-dimensional sound field, and the clear and delicate medium and high audio can highlight the magnetic effect of human voice.
■ The electronic sound pressure protection frequency division network is set with physical phase correction to improve the stability of the whole sound reinforcement system
■ The box body is made of 18 mm imported birch acoustic board. The box body is made of polyester environmental protection paint, and the surface is treated with gradual spray paint, which is the first in the industry. Different angles show blue, black and purple color effects respectively.
■ Waterproof, moisture-proof, sun proof, wear-resistant, easy to maintain, suitable for all kinds of sound reinforcement occasions.
■ 4-corner rotating LOGO with 2.0 mm SPCC Mesh with dust-proof surface.
■ Socket of 35mm standard mounting bracket at the bottom.

应用:
高档KTV扩声
俱乐部、会所等娱乐场所扩声
High grade KTV sound reinforcement
Sound reinforcement in clubs, clubs and other entertainment places

技术参数:
产品型号/ltem Model :    RS-12
音箱类型/Regimentation :    专业二分频音箱
音箱规格/System Type :    12寸全频
单元组成 Drivers HF: 1×1.75″Voice-coil:  44.4mm
                           LF: 1×12″      Voice-coil:  87mm
频响范围 Frequency Range(±3dB) 55Hz-16kHz
覆盖角度 Coverage Angle(-6dB) 80°×60°
灵敏度 Sensitivity(1M,1W) 100dB
输出声压级 Output SPL 128dB 连续 / 140dB 峰值
固定阻抗 Rated Impedance 8ohm
功率 Power 750W AES 3000W Peak
输入连接器 Input Connectors
2×NEUTRIK 四芯音箱插座
净尺寸(宽×深×高) Dimensions(W×D×H) 605mm×365mm×390mm
净重量(Net Weight) 24.5kg


产品型号/ltem Model :    RS-10
音箱类型/Regimentation :    专业二分频音箱
音箱规格/System Type :    10寸全频
单元组成 Drivers HF: 1×1.75″Voice-coil:  44.4mm
                              LF: 1×10″   Voice-coil:  51mm
频响范围 Frequency Range(±3dB) 55Hz-16kHz
覆盖角度 Coverage Angle(-6dB) 80°×60°
灵敏度 Sensitivity(1M,1W) 99dB
输出声压级 Output SPL 125dB 连续 / 130dB 峰值
固定阻抗 Rated Impedance 8ohm
功率 Power 450W AES 1400W Peak
输入连接器 Input Connectors 2×NEUTRIK SPEAKON NL-4MP
净尺寸(宽×深×高) Dimensions(W×D×H) 545mm×330mm×340mm
净重量(Net Weight) 19kg
