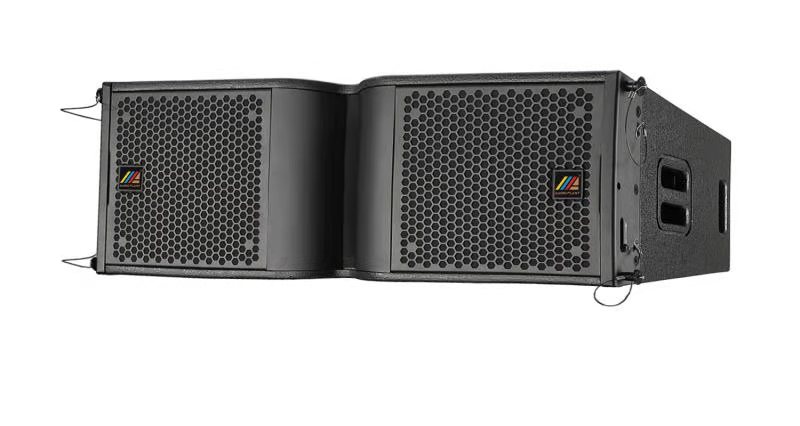

ATS-210 无源线性阵列音箱系统

産 品 特 点

ATS-210充分发挥了波阵面纠正技术的特点，因此可传递清澈精确的音色，并且还拥有独特的近场效应，为听众带来无与伦比的听觉享受，能够轻松还原细微的音乐信号，声音完美准确、还原度高、稳定可靠、高保真音质。高频音域宽广，能扩展最佳聆听区域，音乐表现细腻、宽广自然、华丽感和光泽感、高频清高、舒服不刺耳。
Ats-210 has fully developed the characteristics of wave array correction technology, so it can transmit clear and accurate sound color, and also has unique near-field effect, which brings unparalleled hearing enjoyment to the audience, and can easily restore fine music signals. The sound is perfect, accurate, high reduction, stable and reliable, and high fidelity. The high frequency sound range is broad, and the best listening area can be expanded. The music performance is fine, broad and natural, gorgeous and glossy, high frequency and high-frequency, comfortable and not harsh.

应用：适用于影剧院、多功能厅、教堂、学校、大中型运动场及大中型户内外演出、语言扩声等
Application: suitable for movie theater, multi-function hall, church, school, large and medium-sized playground, large and medium-sized indoor and outdoor performance, language sound reinforcement, etc


型号：ATS-210
系统类型：二路全分频
单元组成 Drivers HF: 1×1.75″Voice-coil:  75mm
LF: 2×10″   Voice-coil:  65mm
频响范围 Frequency Range(±3dB)  50-20KHz
覆盖角度 Coverage Angle(-6dB) 90°*15°
灵敏度 Sensitivity(1M,1W) 105dB
输出声压级 Output SPL 125dB 连续 / 140dB 峰值
固定阻抗 Rated Impedance 8ohm
功率 Power 600W AES 1200W Peak
输入连接器 Input Connectors 2×NEUTRIK SPEAKON NL-4MP
吊装/安装: 线性吊挂
箱体材质: 18厘多层夹板
箱体表面处理: 黑色防水耐磨颗粒状催化聚亚安酯漆
净尺寸(宽×深×高) Dimensions(W×D×H) 310×805×430mm
净重量(Net Weight) 33kg
