C-6015

産 品 特 点

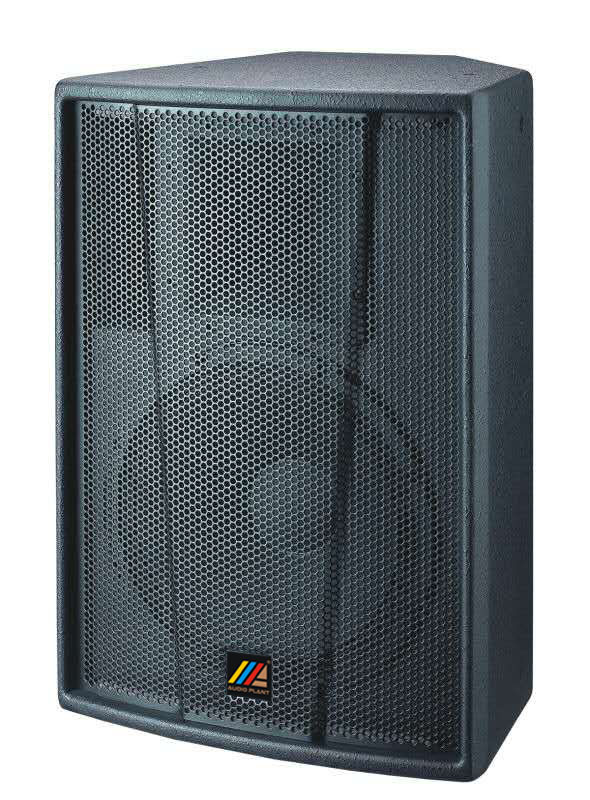

CRH15是一款二分频多用途全频音箱。分频15英寸低频驱动单元和3英寸（Φ75mm）高音,高低音全部采用AUDIOPLANT定制进口单元，高频驱动单元是一个频平滑宽广的精密高频压缩驱动器，低频扬声器为15寸纸盘的精密低频单元。高保真的音色小体积高灵敏度大声压、语言清晰，可以满足不同的扩声场所，双线电路分频器设计保证驱动器在大功率使用的情况不失真不烧单元，保证了设备可靠工作
Crh15 is a two frequency multi-purpose full frequency speaker. The frequency division 15 inch low frequency drive unit and 3 inch (Φ 75mm) treble, bass and high frequency drive unit are all imported customized by auditant. The high frequency drive unit is a precise high frequency compression driver with smooth and wide frequency, and the low frequency loudspeaker is a precise low frequency unit of 15 inch paper tray. High fidelity voice, small volume, high sensitivity, loud pressure, clear language, can meet different sound reinforcement places. The design of two-wire circuit frequency divider ensures that the driver does not distort or burn the unit in the case of high-power use, and ensures the reliable operation of the equipment

应用范围：商务KTV包房、酒吧、多功能厅、会议厅、礼堂。
Business KTV rooms, bars, multi-function hall, conference hall, auditorium.

音箱类型 两分频无源全频音箱
单元组成 Drivers： HF： 3″×1   高频驱动单元
LF： 15″×1  中低频驱动单元
频响范围 Frequency Range：（±3dB): 55-16KHz
输出声压级 Output SPL 124dB 连续 / 130dB 峰值
功率 Power 750W AES 3000W Peak
覆盖角度 Coverage Angle：70°×60° （H×V）
灵敏度（1W/1M）  99db SPL
最大声压级： 125db SPL
固定阻抗 Rated Impedance：8ohm
输入连接器 Input Connectors 2×NEUTRIK 四芯音箱插座
吊挂系统 Handling system: M8螺纹孔
净尺寸(宽×深×高) Dimensions(W×D×H)：高720x深430x 宽430mm
净重量/(Net Weight):30kg
